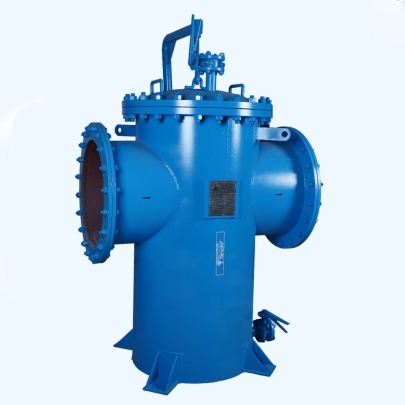

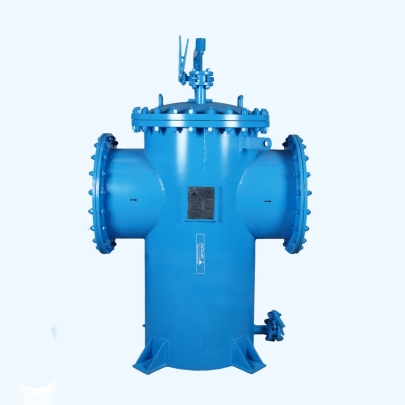

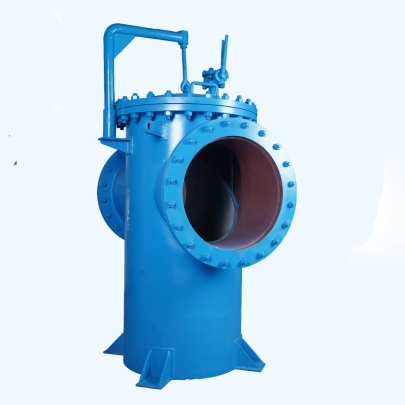

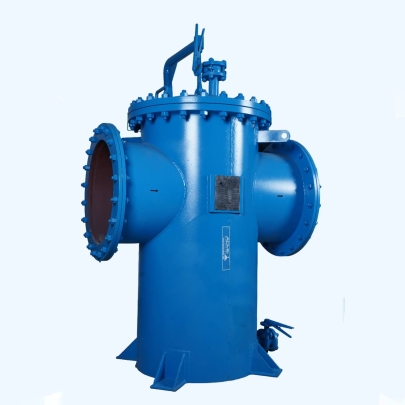

Comprehensive Overview of Simplex Basket Strainers

Simplex basket strainers are an essential component in fluid handling systems, particularly valued for their larger size and substantial debris-holding capacity compared to Y Type strainers. They come in both casted and fabricated forms, offering flexibility to suit various industrial needs and environmental conditions. The design of simplex basket strainers, resembling a basket, allows them to store significant amounts of debris, making them highly efficient in maintaining clean fluid flow.

Construction and Design

Simplex basket strainers are characterized by their robust construction and effective filtration capabilities. The casted versions are made from durable cast materials, ensuring longevity and resistance to wear and tear. These strainers are available in various sizes:

• Screwed and Socket Weld Ends: Ranging from ¼” to 2”.
• Flanged and Butt Weld Ends: Ranging from ½” to 16”.

The substantial size of these strainers provides an extensive filtration area, which is critical for capturing large particles and ensuring smooth fluid flow with minimal pressure drop. The flow direction in these strainers is typically from inside to outside, which maximizes the screen's efficiency and capacity.

Key Features

1. Integrally Cast Housings: The robust cast construction ensures durability and long service life, making these strainers ideal for demanding industrial applications.
2. Large Screen Area: The significant screen area ensures efficient filtration with low pressure drops, maintaining the system's overall efficiency.
3. Threaded Drain: The inclusion of a threaded drain allows for easy removal of accumulated debris, simplifying maintenance and reducing downtime.
4. Flow Direction: The flow from inside to outside ensures that the maximum amount of debris is captured without clogging the strainer.

Customization Options

GRABITENGINEERS Fluid Systems offers a range of customization options to meet the specific needs of their clients. These options include:

1. P Tapings/Gauge: For accurate pressure monitoring and system management.
2. Drain/Vent Valves: These valves facilitate the easy removal of trapped air and debris, ensuring smooth operation.
3. Plated Filter Element: Enhances the durability and lifespan of the filter element.
4. Magnetic Screen Insert: Captures ferrous particles, adding an extra layer of filtration.
5. Different Drilling Templates: Available in ASME, DN, BS, and IS standards, providing compatibility with various piping systems.
6. Special Finishes and Linings: Customizable coatings and linings to suit specific environmental conditions and fluid characteristics.
7. Threading Options (BSP/NPT): Flexible threading options to ensure compatibility with existing systems.

Applications

Simplex basket strainers are indispensable in various industries, including:

• Chemical Processing: For removing impurities and protecting sensitive equipment.
• Water Treatment: Ensuring clean and safe water by filtering out large debris.
• Oil and Gas Refining: Protecting pumps and compressors from particulate damage.
• Industrial Fluid Handling: Maintaining efficient operation by keeping systems free of debris.

Benefits

1. Durability: The robust cast and fabricated construction ensures that the strainers can withstand harsh industrial environments.
2. Efficiency: Large filtration areas and low pressure drops contribute to the overall efficiency of the fluid handling systems.
3. Ease of Maintenance: Features like threaded drains and optional vent valves make these strainers easy to maintain, reducing downtime and operational costs.
4. Flexibility: With a range of sizes, materials, and customization options, these strainers can be tailored to meet the specific needs of different applications.

Technical Specifications

• Material: Cast Iron, Carbon Steel, Stainless Steel (varies based on client requirements)
• Connection Type: Screwed, Socket Weld, Flanged, Butt Weld
• Pressure Rating: 150#

Investing in simplex basket strainers from GRABITENGINEERS Fluid Systems ensures reliable performance and protection for your critical equipment. Their robust construction, efficient design, and wide range of customization options make them the ideal choice for a variety of industrial applications, ensuring the longevity and efficiency of your fluid handling systems.
