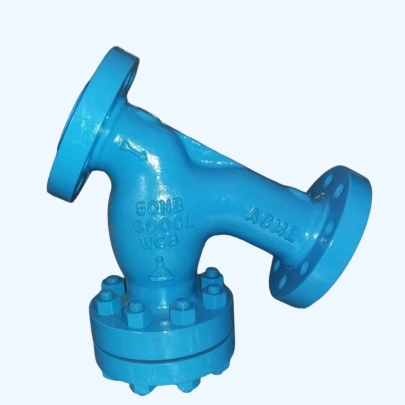

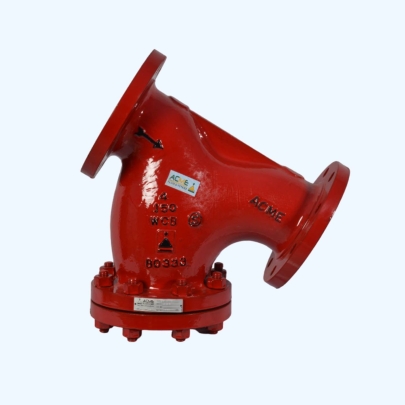

Casted Flanged/Buttweld Y Type Strainer Y Type Strainers


Cast Y Type Strainers: Efficient and Durable Solutions for Pipeline Protection

Cast Y Type Strainers are indispensable components in industrial pipeline systems, designed to protect pumps, compressors, and other critical equipment from dirt and debris. Named for their distinctive "Y" shape, these strainers effectively capture contaminants without causing significant pressure drops, making them ideal for use in both horizontal and vertical pipelines. Widely utilized due to their economic and efficient performance, Cast Y Type Strainers are a common choice for permanent installations across various industries.

Key Features:

  • Wall Thickness: Built to the standards of API 600, ensuring durability and reliability in high-pressure environments.
  • Compact Design: Engineered for easy installation, these strainers can fit comfortably in a variety of pipeline configurations.
  • Versatile Installation: Suitable for both horizontal and vertical installations, providing flexibility in various applications.
  • Large Screening Capacities: Capable of handling significant amounts of debris, ensuring continuous protection of your systems.
  • Precision Machined Seats: Ensure a tight seal and effective filtration, maintaining the integrity of your pipeline system.

Product Details:

Cast Y Type Strainers are constructed primarily from cast steel, with alternatives available in stainless steel or alloy steel to suit specific application needs. These materials provide robust performance and resistance to wear and tear, ensuring long-term durability. The strainers are designed to systematically remove debris from the pipeline, preventing damage and maintaining operational efficiency.


  • Pipeline Systems: Protects pipelines from debris, ensuring smooth operation and longevity.
  • Pumps and Compressors: Captures contaminants before they reach sensitive equipment, reducing maintenance and downtime.
  • Industrial Processes: Ideal for industries where maintaining clean fluid or gas streams is crucial, such as chemical processing, oil and gas, and water treatment.

Dimensions and Pressure Ratings:

Cast Y Type Strainers are available in a range of sizes from 0.5 inches to 16 inches, with flanged ends or butt-weld ends to accommodate different pipeline requirements. The pressure ratings for these strainers range from 150# to 2500#, allowing them to withstand various operating conditions and pressures.

Options and Customizations:

  • Larger Size and Pressure Rating: Custom sizes and higher pressure ratings are available to meet specific operational demands.
  • P Tappings/Gauge: Additional tapping points for pressure gauges can be included for monitoring purposes.

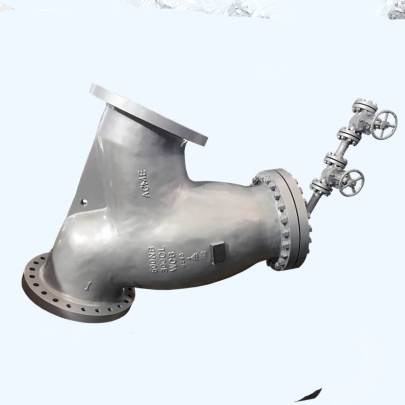

  • Drain Valves: Optional drain valves for easy maintenance and cleaning of the strainer.
  • Pleated Filter Element: Enhanced filtration efficiency with optional pleated filter elements.
  • Magnetic Screen Insert: For additional protection, a magnetic screen insert can be added to capture ferrous particles.


  • Economic Solution: Cost-effective, making it a popular choice for long-term use in various industrial applications.
  • Durability: Robust construction ensures long-lasting performance even under harsh operating conditions.
  • Ease of Maintenance: Designed for easy access and cleaning, minimizing downtime and maintenance efforts.
  • Flexibility: Suitable for a wide range of applications and installation configurations.

Investing in Cast Y Type Strainers ensures that your pipeline systems remain protected from contaminants, reducing the risk of damage and maintaining efficient operation. With their durable construction, versatile installation options, and large screening capacities, these strainers are an ideal choice for safeguarding your critical equipment and ensuring the smooth flow of fluids and gases in your industrial processes. Ensure the reliability and longevity of your systems with our high-quality Cast Y Type Strainers.
