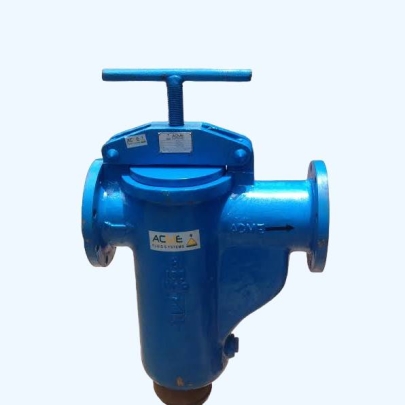

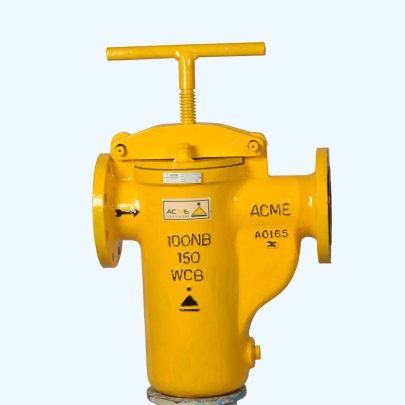

Comprehensive Overview of Quick Opening Simplex Basket Strainers

Basket strainers, particularly larger than Y Type strainers, are critical in various industrial applications for filtering out debris from fluid systems. Among these, the quick opening simplex basket strainers stand out due to their efficient design and ease of maintenance. Available in both casted and fabricated forms, these strainers offer substantial debris-holding capacity, ensuring that fluid systems remain clean and operational with minimal interruption.

Design and Construction

Quick opening simplex basket strainers feature a basket-like design, providing a large filtration area capable of storing significant amounts of debris. This design is particularly effective for applications requiring high debris holding capacity and efficient filtration. Although they are heavier than smaller strainers, their large size and robust construction make them ideal for handling substantial dirt loads without frequent replacements.

Key Features

1. Quick Open Cover: The standout feature of these strainers is the quick open cover, which allows for rapid cleaning and maintenance without the need for tools. This feature significantly reduces downtime, enhancing overall operational efficiency.
2. Integrally Cast Housings: Made from durable cast materials, these strainers are built to withstand harsh industrial environments, ensuring longevity and reliability.
3. Inside to Outside Flow: The fluid flows from inside to outside, maximizing the filtration area and ensuring efficient debris capture.
4. Threaded Drain: The inclusion of a threaded drain facilitates easy removal of accumulated debris, simplifying maintenance procedures.
5. Large Screen Area: The extensive screen area ensures efficient filtration with low pressure drops, maintaining the system’s performance and preventing clogging.

Sizes and Ratings

Quick opening simplex basket strainers are available in a range of sizes to suit various applications:

• Screwed and Socket Weld Ends: From ¼” to 2”.
• Flanged and Butt Weld Ends: From ½” to 12”.

These strainers are rated at 150#, making them suitable for a wide range of pressure conditions commonly found in industrial pipelines.

Customization Options

To cater to diverse industrial requirements, GRABITENGINEERS Fluid Systems offers a variety of customization options for these strainers:

1. P Tapings/Gauge: For accurate monitoring of pressure and ensuring optimal system performance.
2. Drain/Vent Valves: Facilitate the easy removal of trapped air and debris, ensuring smooth operation.
3. Plated Filter Element: Enhances the durability and lifespan of the filter element.
4. Magnetic Screen Insert: Captures ferrous particles, adding an extra layer of filtration.
5. Different Drilling Templates: Available in ASME, DN, BS, and IS standards, providing compatibility with various piping systems.
6. Special Finishes and Linings: Customizable coatings and linings to suit specific environmental conditions and fluid characteristics.
7. Threading Options (BSP/NPT): Flexible threading options to ensure compatibility with existing systems.

Applications

Quick opening simplex basket strainers are essential in various industries, including:

• Chemical Processing: Protecting equipment by removing impurities from chemical fluids.
• Water Treatment: Ensuring clean water by filtering out large debris.
• Oil and Gas Refining: Preventing damage to pumps and compressors from particulate matter.
• Industrial Fluid Handling: Maintaining system efficiency by keeping fluid paths clear of debris.

Benefits

1. Durability: The robust cast construction ensures that these strainers can withstand harsh industrial conditions.
2. Efficiency: The large filtration area and low pressure drop contribute to the overall efficiency of fluid handling systems.
3. Ease of Maintenance: The quick open cover and threaded drain make maintenance simple and fast, reducing operational downtime.
4. Flexibility: With a range of sizes, materials, and customization options, these strainers can be tailored to meet specific application requirements.

Technical Specifications

• Material: Cast Iron, Carbon Steel, Stainless Steel (varies based on client requirements)
• Connection Type: Screwed, Socket Weld, Flanged, Butt Weld
• Pressure Rating: 150#

Investing in quick opening simplex basket strainers from GRABITENGINEERS Fluid Systems ensures reliable performance and protection for your critical equipment. Their robust construction, efficient design, and wide range of customization options make them the ideal choice for various industrial applications, ensuring the longevity and efficiency of your fluid handling systems.
