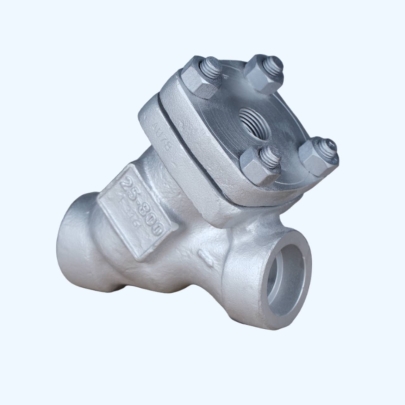

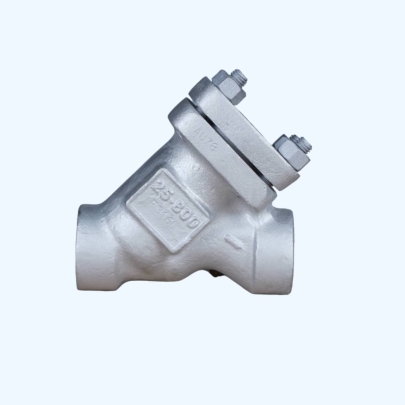

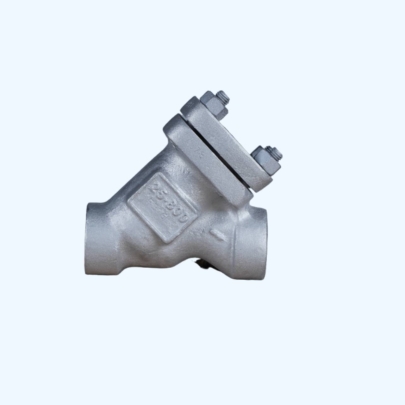

Forged Y Type Strainer: High-Pressure Efficiency for Industrial Pipelines
The Forged Y Type Strainer is a critical component in the Y Type Strainer family, specifically designed to handle high-pressure applications within industrial pipelines. Renowned for its robust construction and effective performance, this strainer is essential for maintaining the integrity and efficiency of pipeline systems by removing solid particles from fluid streams without compromising flow pressure.
Key Features:
- High Pressure Retention: Engineered to withstand high-pressure environments, with ratings from 800# to 2500#.
- Versatile Installation: Suitable for both horizontal and vertical pipeline installations, offering flexibility in various system configurations.
- Precision Machined Seats: Ensures a tight seal and effective filtration, maintaining the integrity of your pipeline system.
- Compact Design: Streamlined for easy installation and maintenance, fitting comfortably within a range of pipeline setups.
- Bolted Cover with Blow Off Drain Connections: Facilitates straightforward maintenance and debris removal.
Product Overview:
The Forged Y Type Strainer stands out due to its Y-shaped design, a hallmark of the Y Type Strainer family, combined with the superior durability of forged materials. Constructed from Forged Steel (A 105), F 304, and F 316, this strainer is designed to handle the rigors of high-pressure applications while effectively removing solid contaminants from fluid flows.
Applications:
- High-Pressure Pipelines: Essential for industries like oil and gas, chemical processing, and power generation, where high-pressure conditions are common.
- Fluid Handling: Ensures the purity and cleanliness of fluids by removing debris, thus protecting downstream equipment and maintaining operational efficiency.
- Industrial Processes: Suitable for critical applications where reliable filtration and pressure maintenance are crucial.
Construction and Materials:
- Materials: The strainer is made from Forged Steel (A 105), F 304, and F 316, providing excellent resistance to wear, corrosion, and high pressures.
- Finish and Linings: Available with special finishes and linings to enhance performance and durability in harsh conditions.
Technical Specifications:
- Size: Available in sizes from ¼ inch to 2 inches, with options for screwed or socket weld ends.
- Pressure Rating: Capable of handling pressures ranging from 800# to 2500#, making it suitable for high-pressure applications.
Additional Features and Options:
- Drain Valves: Included for easy maintenance and cleaning, allowing for efficient debris removal.
- Plated Filter Element: Optional pleated filter elements enhance filtration efficiency, capturing finer particles.
- Magnetic Screen Insert: Available for additional protection by capturing ferrous particles.
- Threading Types: Various threading types (NPT/BSP) to accommodate different pipeline connections.
- Special Finish and Linings: Custom finishes and linings available to meet specific application needs.
- P Tapings/Gauge: Optional tapings for pressure gauges to monitor system performance.
Benefits:
- Durability: The forged construction ensures long-lasting performance even under high-pressure conditions.
- Ease of Maintenance: The compact design and bolted cover with blow-off drain connections simplify installation and maintenance, reducing downtime.
- Versatility: Suitable for a wide range of industrial applications, providing reliable protection and efficient filtration in various pipeline configurations.
Summary
The Forged Y Type Strainer is a high-performance solution designed to protect industrial pipeline systems from solid contaminants while maintaining high pressure and flow efficiency. Its robust construction from high-quality forged materials, combined with versatile installation options and effective filtration capabilities, makes it an essential component for high-pressure applications. By investing in the Forged Y Type Strainer, you ensure the reliability and longevity of your pipeline systems, safeguarding your critical equipment and maintaining smooth operation across diverse industrial processes.
