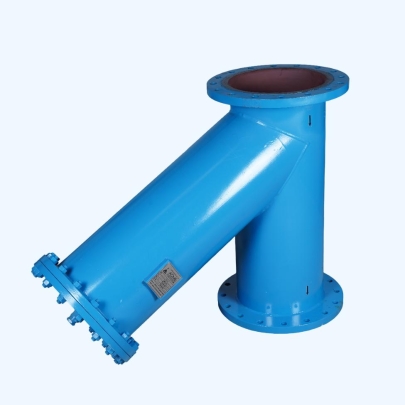

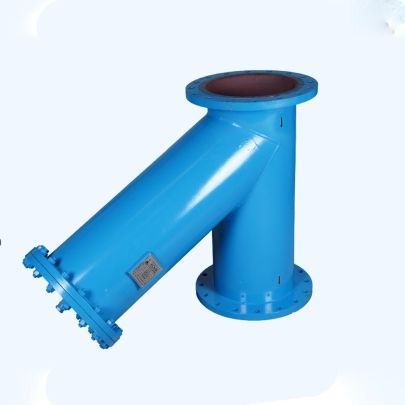

Fabricated Y Type Strainers: Cost-Effective Filtration for Industrial Pipelines

Fabricated Y Type Strainers are essential components designed for efficient debris removal in industrial pipeline systems. Their distinctive Y-shape configuration makes them ideal for inclined or horizontal pipelines where removing dust and debris from flowing fluids is challenging. These strainers are cylindrical, ensuring a snug fit within the pipe for optimal filtration performance. Known for their affordability and reliability, fabricated Y Type Strainers are utilized in millions of pipeline systems worldwide.

Key Features:

• Compact Design: Engineered for easy installation and maintenance, these strainers fit comfortably within various pipeline setups.
• Versatile Installation: Suitable for both horizontal and vertical applications, providing flexibility in different system configurations.
• Large Screening Capacities: Capable of handling substantial amounts of debris, ensuring the protection and smooth operation of downstream equipment.
• Precision Machined Seats: Provides a tight seal and effective filtration, maintaining the integrity of the pipeline system.
• Bolted Cover with Blow Off Drain Connections: Facilitates straightforward maintenance and debris removal.

Product Overview:

Fabricated Y Type Strainers are constructed from durable materials such as mild steel, stainless steel, or alloy steel. These materials provide excellent resistance to wear and tear, ensuring long-term durability and performance. The strainers are designed to systematically remove debris from pipelines, preventing damage and maintaining operational efficiency.

Applications:

• Pipelines: Protects pipeline systems from debris, ensuring smooth operation and longevity.
• Pumps and Compressors: Captures contaminants before they reach sensitive equipment, reducing maintenance and downtime.
• Industrial Processes: Ideal for industries such as chemical processing, oil and gas, and water treatment where maintaining clean fluid or gas streams is crucial.

Construction and Materials:

• Materials: Constructed from high-quality mild steel, stainless steel, or alloy steel, providing robust performance and resistance to harsh industrial conditions.

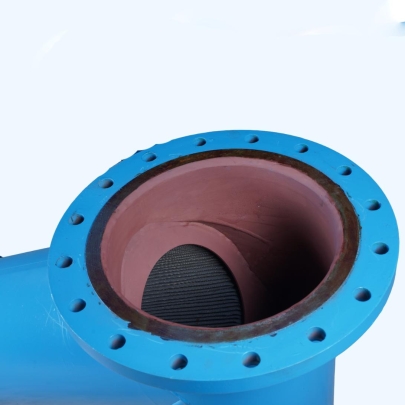

• Finish and Linings: Available with special finishes and linings to enhance performance and longevity, ensuring the strainer withstands demanding environments.

Technical Specifications:

• Size: Available in sizes from 2 inches to 24 inches, with options for flanged or butt-weld ends, accommodating different pipeline requirements.
• Pressure Rating: Rated between 150# to 2500#, suitable for a wide range of pressure applications.
• Weight and Compactness: Low weight and compact size facilitate easy installation and handling.

Additional Features and Options:

• Drain Valves: Included for easy maintenance and cleaning, allowing for efficient debris removal.
• Plated Filter Element: Optional pleated filter elements enhance filtration efficiency, capturing finer particles.
• Magnetic Screen Insert: Available for additional protection by capturing ferrous particles.
• Drilling Templates: Various drilling templates (ASME/DN/BS/IS) to accommodate different pipeline standards.
• Special Finish and Linings: Custom finishes and linings available to meet specific application needs.
• D.P Tapings/Gauge: Optional tapings for pressure gauges to monitor system performance.

Benefits:

• Cost-Effective Solution: Offers an economical choice for long-term use in various industrial applications.
• Durability: Constructed from high-quality materials, ensuring long-lasting performance even under demanding conditions.
• Ease of Installation and Maintenance: Compact design and additional features like drain valves simplify installation and maintenance, reducing downtime.
• Versatility: Suitable for a wide range of industrial applications and pipeline configurations, providing reliable protection and efficient filtration.

Summary

Fabricated Y Type Strainers are a high-performance, cost-effective solution designed to protect industrial pipeline systems from solid contaminants while maintaining pressure efficiency. Their durable construction from high-quality materials, combined with versatile installation options and large screening capacities, makes them an ideal choice for maintaining the reliability and efficiency of your industrial processes. Invest in Fabricated Y Type Strainers to ensure clean fluid flow, protect critical equipment, and maintain smooth operation across diverse industrial applications.
