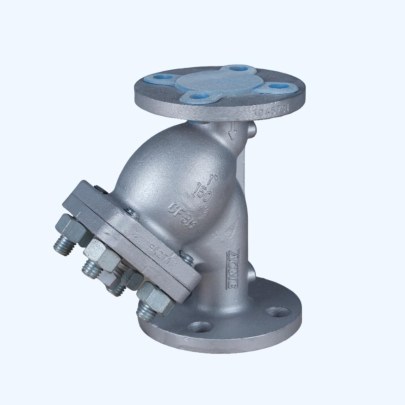

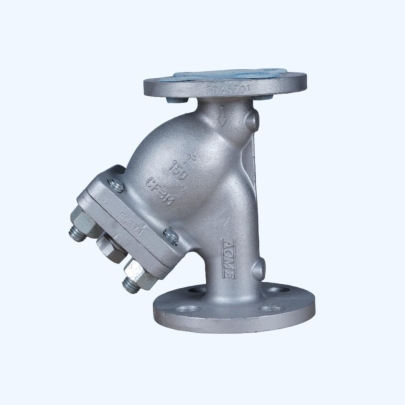

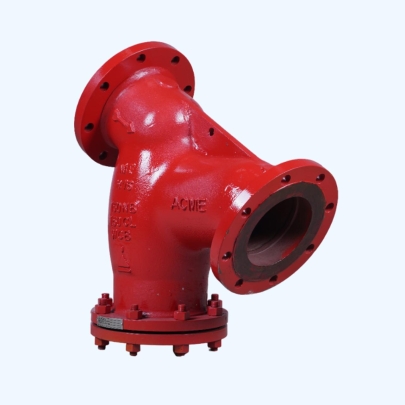

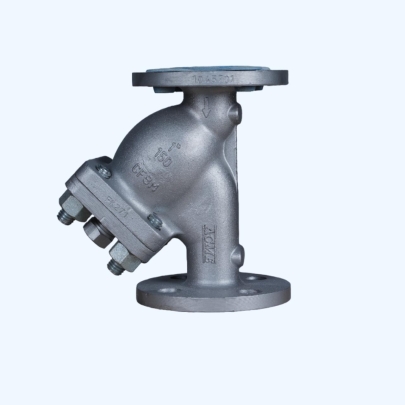

Cast Y Type Strainers: Durable and Efficient Filtration Solutions for Industrial Pipelines

Cast Y Type Strainers are essential components in pipeline systems, designed to protect pumps, compressors, and other critical equipment by removing dirt and debris from flowing fluids. Their Y-shaped configuration not only gives them their name but also ensures efficient filtration, making them ideal for both horizontal and vertical pipeline installations. These strainers are known for their cost-effectiveness, reliability, and widespread use across various industries.

Key Features:

• Durable Construction: Made from high-quality cast iron, these strainers are designed to withstand the rigors of industrial applications, offering excellent resistance to corrosion and wear.
• Large Filtration Area: The Y-shaped design provides a substantial filtration area, reducing the frequency of maintenance and ensuring effective removal of impurities.
• Versatile End Connections: Available with various end connections such as flanged, threaded, or socket weld, providing flexibility for integration into different piping systems.
• Pressure Ratings: Engineered to handle varying pressure conditions, with ratings typically between 150# and 1500#, making them suitable for a wide range of industrial applications.
• Compact Design: The compact size facilitates easy installation and maintenance, fitting comfortably in different pipeline configurations.

Product Overview:

Cast Y Type Strainers are primarily constructed from cast steel, with alternatives available in stainless steel or alloy steel depending on the application requirements. These materials ensure the strainers' durability and longevity, capable of performing under demanding industrial conditions. The strainers effectively remove debris from pipelines, thereby preventing damage to downstream equipment and maintaining operational efficiency.

Technical Specifications:

• Size Range: Available in sizes from ¼ inch to 2 inches for screwed and socket weld ends, and up to 24 inches for flanged ends.
• Pressure Rating: Typically between 150# to 2500#, accommodating various pressure requirements.
• Filtration Area: More than four times the standard, enhancing debris removal efficiency and protecting equipment.

Additional Features:

• Precision Machined Seats: Ensures a tight seal and effective filtration, maintaining the integrity of the pipeline system.
• Bolted Cover with Blow Off Drain Connections: Facilitates straightforward maintenance and debris removal.
• Drain Valves: Optional drain valves for easy maintenance and cleaning.
• Plated Filter Element: Enhanced filtration efficiency with optional pleated filter elements, capturing finer particles.
• Magnetic Screen Insert: Additional protection by capturing ferrous particles.
• Drilling Templates: Various drilling templates (ASME/DN/BS/IS) to accommodate different pipeline standards.
• Special Finishes and Linings: Custom finishes and linings to meet specific application needs.
• D.P Tapings/Gauge: Optional tapings for pressure gauges to monitor system performance.

Applications:

Cast Y Type Strainers are versatile and suitable for a wide range of industries, including:

• Water Treatment: Ensuring clean water flow by removing debris and particulates.
• Petrochemical and Chemical Processing: Protecting sensitive equipment from contaminants.
• Power Generation: Maintaining the efficiency and longevity of power generation systems.
• HVAC Systems: Preventing debris from clogging and damaging HVAC components.

Compliance and Certifications:

Manufactured in accordance with industry standards and regulations, Cast Y Type Strainers ensure product quality and reliability. Certifications may include ISO, ANSI, ASTM, or other relevant standards, providing assurance of their performance and safety.

Benefits:

• Cost-Effective: Offers an economical solution for long-term use in various industrial applications.
• Durability: Constructed from high-quality materials, ensuring long-lasting performance even under demanding conditions.
• Ease of Installation and Maintenance: Compact design and additional features like drain valves simplify installation and maintenance, reducing downtime.
• Versatility: Suitable for a wide range of industrial applications and pipeline configurations, providing reliable protection and efficient filtration.

Summary

Cast Y Type Strainers are high-performance, cost-effective filtration solutions designed to protect industrial pipeline systems from solid contaminants while maintaining pressure efficiency. Their durable construction from high-quality materials, combined with versatile installation options and large screening capacities, makes them an ideal choice for maintaining the reliability and efficiency of industrial processes. Investing in Cast Y Type Strainers ensures clean fluid flow, protects critical equipment, and supports smooth operation across diverse industrial applications.
